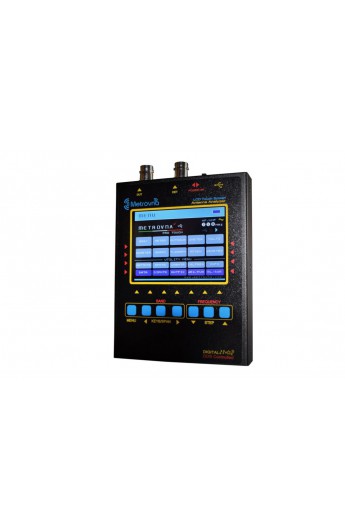

Technical Features METROVNA DELUXE 250MHz
◾ Coverage 100KHz/250 MHz 630/1.25mt
◾ Measure R,Z,X (no sign),SWR,TL,|Phase|,ReturnLoss,Power
◾ Exit DUT -6dBm on 50ohm
◾ Min/Max signal imput –70/+0dBm
◾ Accuracy +-1dB
◾ Operating voltage 3.3V
◾ Dimensions 125mm x 95mm x 20mm
◾ Weight 200gr
Functional characteristics
◾ Display TFT 3.1” 16 K color touch screen
◾ Twenty internal Menus
◾ Internal Rechargeable Battery LI-ion
◾ Battery charging circuit
◾ Interface USB
◾ updating Firmware USB
◾ compatible with IG/VNA, VNA/J , BluVNA and more
◾ Compatible with Tablet,Smarthphone Android
◾ Platforms SW WIN,LINUX,ANDROID,MA
