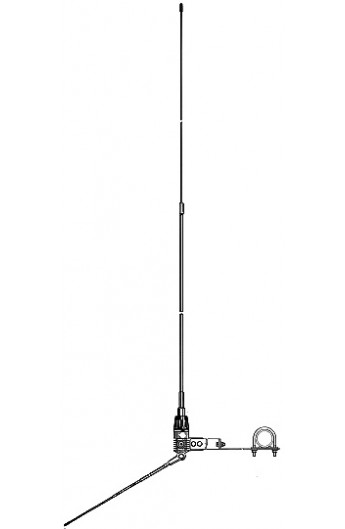

Mechanical Data:
Materials: |
Aluminium, Copper, Galvanized steel, Fiberglass, Nylon |
Height (approx): |
- BOOMERANG A:
- 3900 mm / 12.8 ft
- BOOMERANG W:
- 3500 mm / 11.48 ft
|
Weight (approx): |
- BOOMERANG A:
- 880 gr / 1.94 lb
- BOOMERANG W:
- 800 gr / 1.76 lb
|
Mounting type: |
On-Mast |
Type: |
1/4 λ ground plane boomerang |
Radiation: |
Omnidirectional |
Polarization: |
Linear vertical |
Frequency range: |
27 ... 30 MHz Tunable |
Systems: |
10m-HAM |
Gain: |
0 dBd, 2.15 dBi |
Bandwidth: |
- BOOMERANG A:
- ≥ 1.2MHz @ SWR ≤ 2
- BOOMERANG W:
- ≥ 700KHz @ SWR ≤ 2
|
Max Power: |
- BOOMERANG A:
- 200 Watts (CW) continuous
600 Watts (CW) short time
- BOOMERANG W:
- 150 Watts (CW) continuous
450 Watts (CW) short time
|
Connector: |
UHF-female (SO-239) |
