Hybride SDR-configuratie

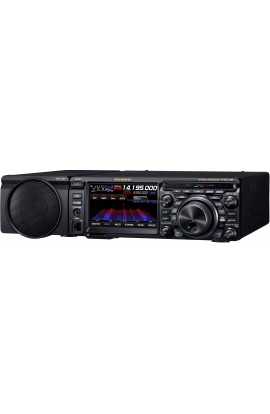

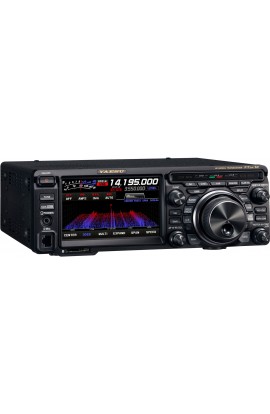

Net als de FTDX101-serie maakt de nieuwe FTDX10 gebruik van de Yaesu Hybrid SDR-configuratie - Narrow Band SDR en Direct Sampling SDR. De Narrow band SDR-ontvanger legt de nadruk op uitstekende prestaties van de ontvanger, terwijl de Direct Sampling SDR een Digital Processing Real-Time Spectrum Scope biedt.

Yaesu FTDX-101D

The Yaesu FTDX101D made its world debut at the 2018 Hamvention® in Xenia, Ohio. This transceiver will employ the latest SDR Technology and carry the high-end reputation of the FTDX series, which amateurs have come to know represents quality. The model number is a tribute to the legendary FT-101 series which included the popular FT-101, FT-101B, FT-101E and FT-101Z.

Features of the FTDX-101D are:

• YAESU High-Class HF/ 50MHz 100W Transceiver
• SDR Technology and Waterfall Display
• Large Touch Panel precision color display
• Active Band Monitor enables rapid band changes with LED illumination of the operating band
• Independent control of the Main and Sub Bands allows effortless operation for the serious contester needing to move quickly between the amateur bands
• High-Q VC Tuning Front-End
• Main tuning dial for Main and Sub Band frequency control includes an Outer Dial for clarifier, VC tuning, fine tuning or custom settings
• TX Frequency Coverage: 160 to 6 meters
• RX Frequency Coverage: 30 kHz to 56 MHz
• 100 watts
• Automatic Tuner
• USB Ports
