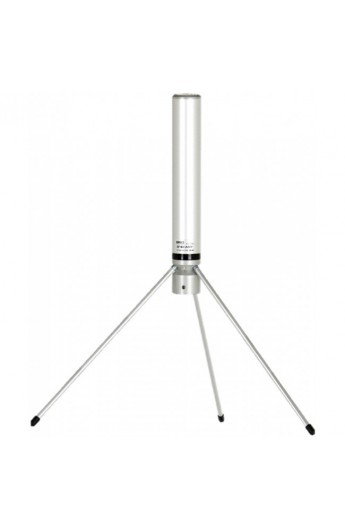

Sirio GP 87-108 LB Uhf Basis antenne
Features:
- Base station antenna, Wide-band
- Unity-gain, Omnidirectional
- Protection from static discharges DC-Ground
- Perfect protection against the worst weather conditions
- Made of anodized aluminium alloy
- Stainless steel hardware
- Side mast mounting allowed by optional bracket FT-2
Electrical Data:
- Type: 1/4λ ground plane large band
- Frequency range: RADIO band 87-108 MHz @ SWR ≤ 2.5
- Polarization: linear vertical
- Gain: 0 dBd – 2.15 dBi
- Max. Power (CW) @ 30°C: 1000 Watts
- Connector: UHF-female (PL)
Mechanical Data:
- Materials: Anodized Aluminium, Stainless Steel, Nylon
- Height (approx.): 1190 mm
- Weight (approx.): 1500 gr
- Mounting mast: Ø 36-40 mm
