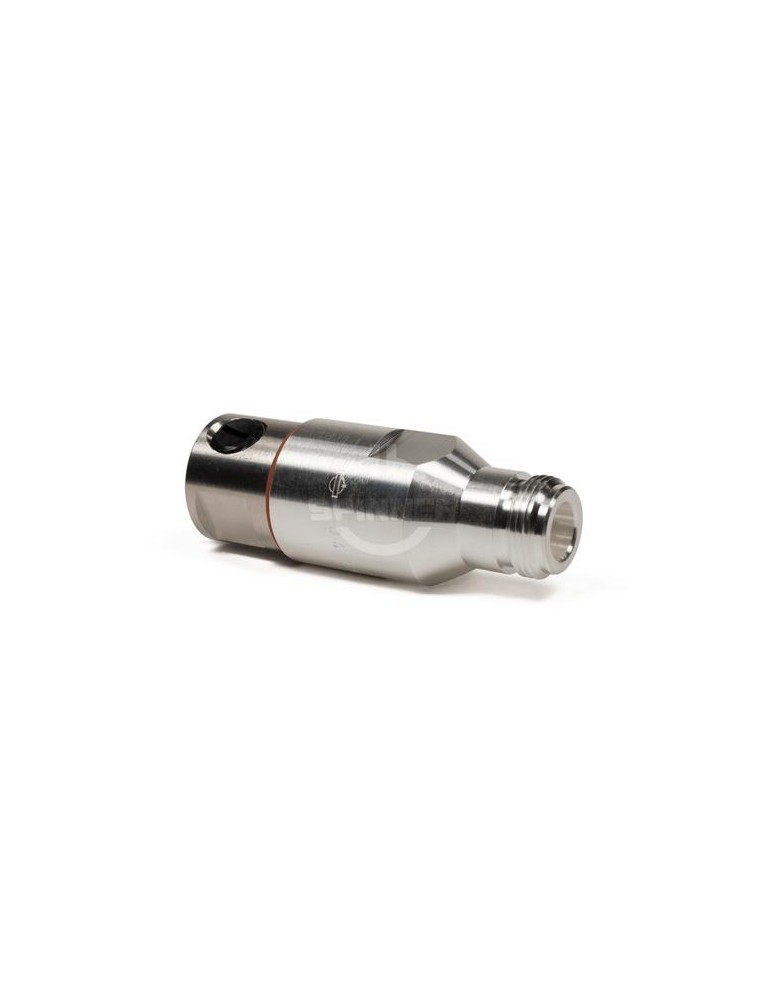

N F LCF 12 50 J
€19.00
Tax included
Left Banner
left Banner
Left Banner1
Left Banner1
New Products
New Products
RF characteristics
- Number of interfaces:
- 1
- Interface type:
- N female (50 Ω) per IEC 61169-16
- Interface direction:
- straight
- Mounting type:
- none
- Frequency range:
- DC to 6 GHz
- VSWR, max.:
- 1.02 @ DC to 1.0 GHz
1.03 @ 1.0 to 2.7 GHz
1.08 @ 2.7 to 3.8 GHz
1.10 @ 3.8 to 6.0 GHz
Mechanical characteristics
- Cable entry type:
- CAF®
- Cable compatibility:
- LF 1/2
- Cable manufacturer types:
- RFS: LCF 12-50
- Inner conductor:
- copper-alloy / silver-plated
- Outer conductor material / surface:
- copper-alloy / silver-plated
- Insulation:
- PTFE, PE
- Housing sealing:
- silicone rubber, PLAST® 2000
- IP protection level:
- IP 68
- IP protection level remark:
- connected with appropriate gasket
- Weight, approx.:
- 90.0 g
