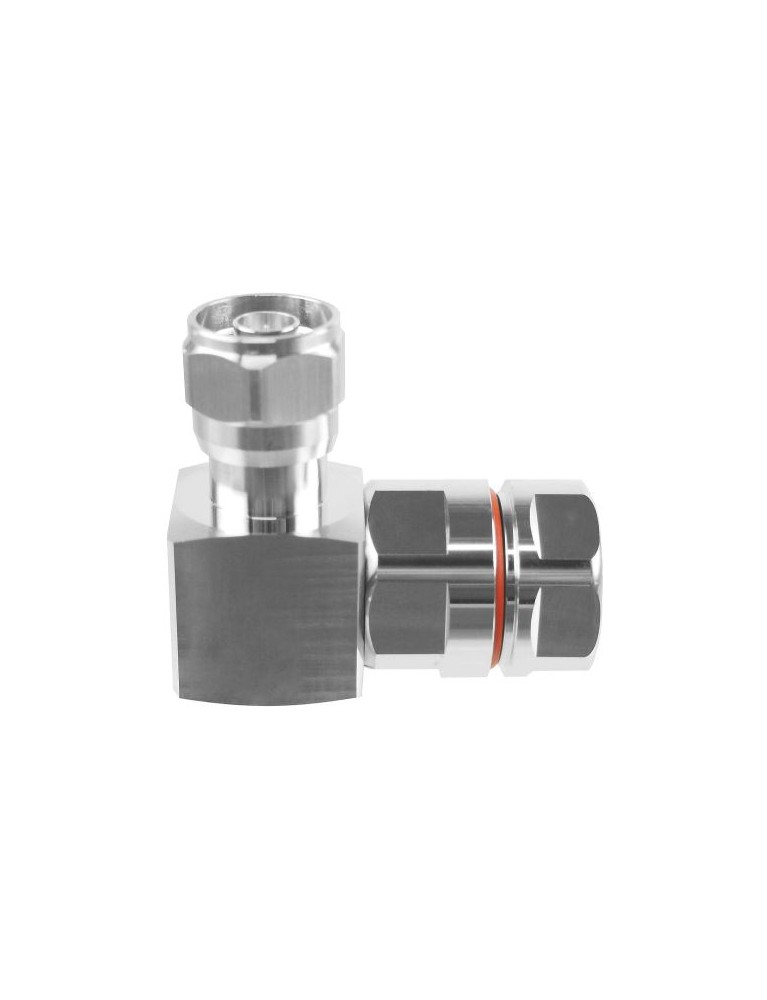

RFS NMR-LCF12-C02 - Special N angle connector for CELLFLEX LCF 12-50 J/JN/JFN

NMR-LCF12-C02
N Male Right Angle Connector for 1/2" Coaxial Cable, OMNI FIT™ standard

Rev : A | Rev date : 22 Nov 2016

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminum) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.

FEATURES / BENEFITS

  • Cost effective two-piece design for safe and easy installation
  • Compatible with copper and aluminium cable types i.e. one connector for both outer conductor materials eliminates the risk of faulty connector installation and helps to keep inventory down
  • Robust mechanical design for low and consistent intermodulation performance i.e. keeps the mobile network performance up reduces the number of dropped calls and avoids revenue losses
  • Superior electrical performance for consistent and repeatable VSWR i.e. ensure network system performance
  • Waterproof to IP 68 i.e. no downtime risk, secures revenue
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


Technical features

GENERAL SPECIFICATIONS

Transmission Line Type Coaxial Cable
Cable Size 1/2
Cable Type Foam Dielectric Radiating
Model Series LCF12-50 Series ICA12-50 Series RCF12-50 Series
Connector Interface N
Connector Type
OMNI FIT™ Standard Right Angle
Sealing Method O-ring
Gender Male

ELECTRICAL SPECIFICATIONS

Nominal Impedance, ohms Ohm 50
3rd Order IM Product @ 2x20 Watts dBc -159 typical
Maximum Frequency GHz 6
VSWR, Return Loss VSWR (dB) 0 < f ≤ 1.0 GHz: 1.04 (34.2)
1.0 < f ≤ 2.0 GHz: 1.06 (30.7)
2.0 < f ≤ 2.7 GHz: 1.10 (26.4)
2.7 < f ≤ 3.7 GHz: 1.12 (24.9)
3.7 < f ≤ 6.0 GHz: 1.15 (23.1)

MECHANICAL SPECIFICATIONS

Plating Outer/Inner Trimetal/Silver
Length mm (in) 52.3 (2.06)
Outer Diameter mm (in) 49.5 (1.95)
Inner Contact Attachment Basket
Outer Contact Attachment Spring C-Ring

ACCESSORIES

Wrench size front mm (in) 24 (15/16)
Wrench size rear mm (in) 24 (15/16)

TESTING AND ENVIRONMENTAL

Waterproof Level IP68
