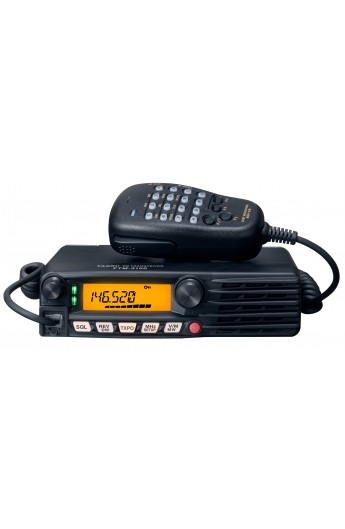

FTM-3100/E
Analog FM Single Band
2-Meter TRANSCEIVER
The new FTM-3100/E is a ruggedly built yet compact VHF-FM mobile transceiver, providing high output power of up to 65 Watts to ensure stable long-distance communications. One of the distinguishing features of this exciting new mobile transceiver is the Front Panel Speaker delivering 3 Watts of loud and crystal clear audio; designed for stress-free and enjoyable communications - even in noisy environments.
This new mobile is equipped with a heavy-duty heat sink that includes an extraordinary FACC; Funnel Air-Convection Conductor (Wind Tunnel). The FACC gathers cool air through a wide open front air-intake and concentrates the air flow to the critical final amplifier area drawn by a rear cooling fan.
|
Powerful and Rugged 65 Watt Transmitter
Enjoy 65 Watts of 2-Meter RF Output to ensure long distance communication even in the toughest of situations. Type: F3E Variable Reactance Modulation.
3 watts of crystal clear front panel audio
In any environment enjoy loud and crystal clear audio with 3 Watts of audio from the FTM-3200R's front mounted speaker. 8 Watt output using Optional External Speaker (MLS-200-M10)
FACC - Funnel Air-Convection Conductor (Wind Tunnel).
Cool air is drawn through a wide open front air intake and is then concentrated over critical areas of the Power Amplifier (PA) section of the FTM-3100/E
Frequency Range
Transmit: 144 - 148 MHz Receive: 136 - 174 MHz
Dimensions
Size: 6.1" x 1.7" x 6.1" (154 x 43 x 155 mm) Weight: 2.86lb (1.3kg)
Other Useful Features
- 220 Alpha-Numeric Memory Channels - CTCSS and DCS Encode/Decode - Extended Receive 136-174 MHz. - High Stability TCXO ±2.5 ppm - Severe Weather Alert
Supplied Accessories
- DTMF Microphone MH-48A6JA - USB Cable - Mounting Bracket - DC Power Cord w/Fuse - Operating Manual - Safety Guide - Warranty Card
Specifications
Circuit Type: Double Conversion Superheterodyne IF: 1st 47.25 MHz, 2nd 450 kHz Sensitivity (12dB SINAD): 0.20uV (HAM Wide), 0.22uV (HAM Narrow) Selectivity (-6/-60dB): 12 kHz/28 kHZ Maximum AF Output: 3W @ 13.8V, 10% THD Output Power: 65/30/5 W Maximum Deviation: +5 kHz (Wide), +2.5 kHz (Narrow) Spurious Radiation: Better than -60 dB Microphone Impedance: 2k Ohms Antenna Impedance: 50 Ohms Operating Temperature Range: -4 Degree's (F) to +140 Degree's (F)
|
|
