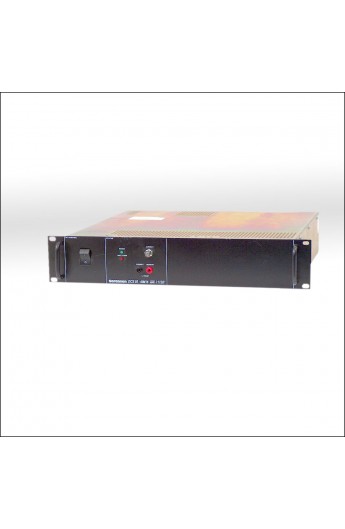

The DCS Family of programmable power supplies incorporate current mode switching rates up to 100 kHz in high power density, low profile chassis. Utilizing unique packaging techniques, the DCS Family provides continuous full output power in any volt/amp combination within the rated output voltage and current limits.
Input Power: Voltage: 200-250VAC single phase, or 190-250VAC three phase Frequency: 47-63Hz Current draw with 2kW load: 14A RMS with 3 phase input, 20A RMS with single phase
Output Power: 2000 watts maximum, 0 watts minimum Voltage internally set for a maximum compliance of 53V � 1VDC Current adjustable from 0 to 38 amps DC
Response Time: Less than 1 ms recovery to 1% band for 30% step load changes from 70% to 100% or 100% to 70%
Drift: Less than 0.05% over 8 hours in voltage or current mode after 30 minute warmup period
