| Type: |

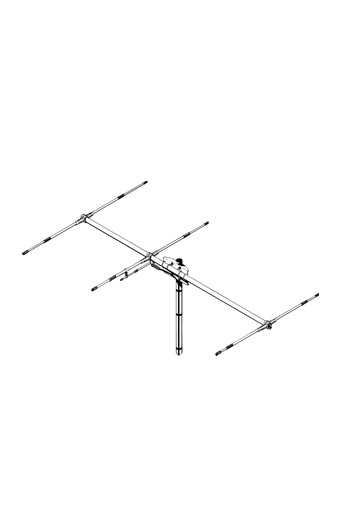

3 elements Yagi |
| Radiation: |
Directional |
| Polarization: |
Linear Horizontal |
| Frequency range: |
50 ... 54 MHz Tunable |
| Systems: |
6m-HAM |
| Gain: |
6.4 dBd - 8.5 dBi |
| Max Power: |
600 W (CW) |
| Grounding protection: |
All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: |
UHF-female (SO-239) |
Mechanical Data:
| Materials: |
Aluminium, Galvanized steel, Zamak |
| Dimensions (approx): |
3000 x 2060 x 100 mm / 9.84 x 6.76 x 0.33 ft |
| Weight (approx): |
4000 gr / 8.82 lb |

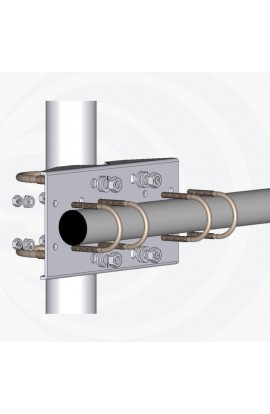

| Mounting type: |
On-Mast |
