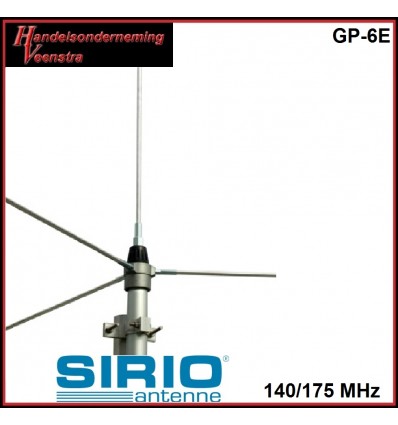

- Base station antenna, Omnidirectional
- Medium-gain, Mono-band
- Suitable for land and marine service
- Tunable by whip cutting
- Protection from static discharges DC-Ground
- Made of aluminium alloy 6063 T-832
- Side mast mounting allowed by optional bracket FT-3 code 2511301.00
Electrical Data
- Type: 2x5/8λ ground plane colinear
- Frequency range: tunable 140...175 MHz
- Impedance: 50Ω
- Radiation (H-plane): 360° omnidirectional
- Radiation (E-plane): beamwidth @ -3 dB = 30°
- Radiation angle: 3.6°
- Polarization: linear vertical
- Gain: 3.8 dBd - 5.95 dBi
- Bandwidth @ SWR ≤2: see diagram
- SWR @ res. freq.: see diagram
- Max. Power (CW) @ 30°C: 200 Watts
- Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
- Connector: UHF-female, gold plated central pin
Mechanical Data
- Materials: Aluminium, Brass, Nylon
- Wind load / resistance: 46 N @ 150 Km/h / 120 Km/h
- Wind surface: 0.04 m²
- Height (approx.): 3060 mm
- Weight (approx.): 750 gr
- Radial length (approx.): 530 mm
- Mounting mast: Ø 25-30 mm
