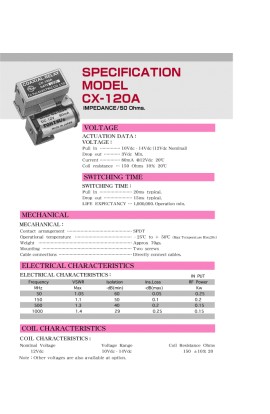

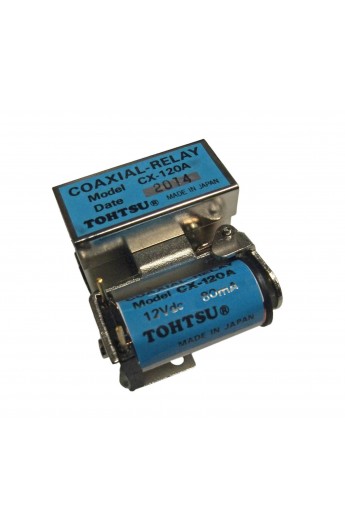

Tohtsu CX-120A 12VDC SPDT Miniature Coaxial Antenna Relay
| Contact Arrangement | SPDT | |
| Operational Temperature | -25°C to +50°C | |
| Max Temperature Rise | 20°C | |
| Weight | Approx. 70 g | |
| Mounting | Two screws | |
| Cable Connections | Directly connect cables (solder/clamp) |
| Impedance | 50 Ohms | |
| Nominal Voltage | 12 V DC | |
| Voltage Range | 10 V DC - 14 V DC | |
| Current | 80 mA @12 V DC 20°C | |
| Coil Resistance | 150 ±10% Ohms @ 20°C |
| Frequency | VSWR | Isolation | Ins. Loss | RF Power Input |
| MHz | max. | -dB (min) | -db (max) | W |
| 50 | 1.05 | 60 | 0.05 | 250 |
| 150 | 1.10 | 50 | 0.10 | 200 |
| 500 | 1.30 | 40 | 0.20 | 150 |
| 1000 | 1.40 | 29 | 0.25 | 150 |
| Pull In | 10 V DC - 14 V DC (12 V DC nominal) | |
| Drop Out | 3 V DC min. |
| Pull In | 20 ms typical | |
| Drop Out | 15 ms typical | |
| Life Expectancy | 500.000 Operations min. |
