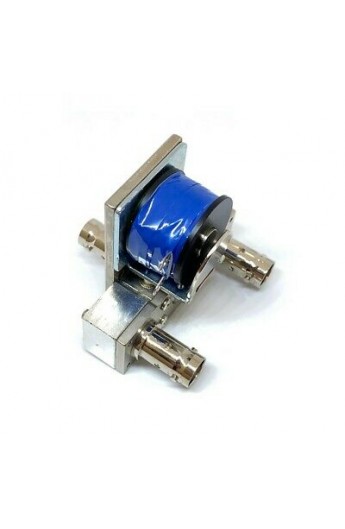

TOHTSU CX-540D Coaxrelais - 2000 MHz
| Contact Arrangement | SPDT | |
| Operational Temperature | -25°C to +50°C | |
| Max Temperature Rise | 20°C | |
| Weight | Approx. 230 g | |
| Mounting | Four screws | |
| Cable Connections | 3 BNC type female connectors |
| Impedance | 50 Ohms | |
| Nominal Voltage | 12 V DC | |
| Voltage Range | 10 V DC - 14 V DC | |
| Current | 160 mA @12 V DC 20°C | |
| Coil Resistance | 75 ±10% Ohms @ 20°C |
| Frequency | VSWR | Isolation | Ins. Loss | RF Power Input |
| MHz | max. | -dB (min) | -db (max) | W |
| 50 | 1.005 | 65 | 0.10 | 350 |
| 150 | 1.01 | 60 | 0.15 | 300 |
| 500 | 1.03 | 53 | 0.18 | 300 |
| 1000 | 1.05 | 46 | 0.20 | 250 |
| 1500 | 1.17 | 42 | 0.20 | 200 |
| 2000 | 1.20 | 39 | 0.25 | 150 |
