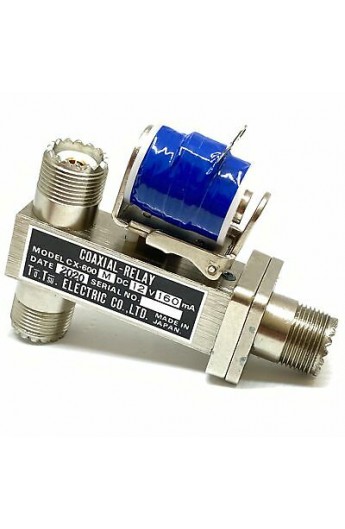

MECHANICAL CHARACTERISTICS:
| Contact Arrangement |
|
SPDT |
| Operational Temperature |
|
-25°C to +50°C |
| Max Temperature Rise |
|
20°C |
| Weight |
|
Approx. 230 g |
| Mounting |
|
Four screws |
| Cable Connections |
|
3 M (UHF) Type female connectors |
ELECTRICAL CHARACTERISTICS:
| Impedance |
|
50 Ohms |
| Nominal Voltage |
|
12 V DC |
| Voltage Range |
|
10 V DC - 14 V DC |
| Current |
|
160 mA @12 V DC 20°C |
| Coil Resistance |
|
75 ±10% Ohms @ 20°C |
RF PROPERTIES:
| Frequency |
VSWR |
Isolation |
Ins. Loss |
RF Power Input |
| MHz |
max. |
-dB (min) |
-db (max) |
kW (PEP) |
| 50 |
1.03 |
60 |
0.07 |
1.0 |
| 150 |
1.10 |
48 |
0.10 |
1.0 |
| 500 |
1.15 |
37 |
0.15 |
0.8 |
ACTUATION DATA:
| Pull In |
|
10 V DC - 14 V DC (12 V DC nominal) |
| Drop Out |
|
3 V DC min. |
SWITCHING TIME:
| Pull In |
|
20 ms typical |
| Drop Out |
|
15 ms typical |
| Life Expectancy |
|
1.000.000 Operations min. |
DIMENSIONS:
TYPICAL OPERATING CURVES:
SCHEMATIC:
