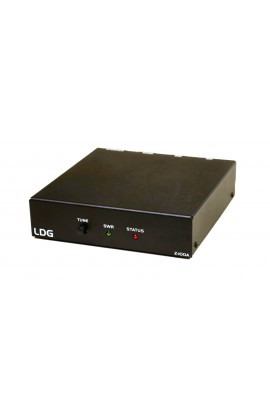

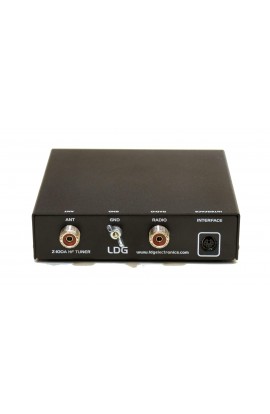

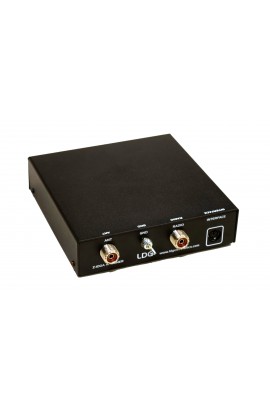

LDG-Z 100 A

€265.00
Tax included

The Z-100A features LDG’s famous 10:1 SWR tuning range that matches Dipoles, Verticals, End fed wires, G5RVs or even an Off center fed Windham. Easy integration means plug and play operation; installation could not be simpler. The Z-100A tuner goes anywhere with and HF radio… desktop, portable, parks, islands, or tall summits.

  • 0.1 to 125 Watt SSB/CW, 30W Digital.
  • 2000 memories for instantaneous band changing.
  • Controlled from Icom Tuner button on radio or Push button on Tuner.
  • Compatible with any Icom radio that is AH-4 or AH-3 compatible. (6M tuning from Tuner button for radios that are only AH-3 compatible)
  • Partial radio list: IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, 7610 (and all variants).
  • Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune.
  • 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
  • Tunes 4 to 800 ohm loads (16 to 150 on 6M)
  • For Dipoles, Verticals, Vs, Beams or any Coax Fed Antenna.
  • Includes Icom interface cable. Ready to use out of the box.
  • Small Size Enclosure: 6.5″ L x 6.5″ W x 1.25″ H.
  • Weight: 1.5 pounds.

No customer reviews for the moment.

Write your review

LDG-Z 100 A

The Z-100A features LDG’s famous 10:1 SWR tuning range that matches Dipoles, Verticals, End fed wires, G5RVs or even an Off center fed Windham. Easy integration means plug and play operation; installation could not be simpler. The Z-100A tuner goes anywhere with and HF radio… desktop, portable, parks, islands, or tall summits.
