General- Frequency Range: 144-146 MHz 430-440 MHz (*Export version 136-174MHz 400-480MHz)
- Frequency Stability: ±2.5ppm
- Operating Voltage: DC 7.2V
- Channel No: 128*2
- Antenna: High gain antenna
- Antenna Impedance: 50Ω
- Mode of operation: Simple or semi-duplex
- Dimension: 109*52*30mm
Transmitter
- Output power: ≥4W(H) ≤0.5W(L)
- Modulation Mode: 16kΦF3E / 11kΦF3E
- Maximum deviation: ＜5kHz / ＜2.5kHz
- Adjacent Ch. Power: ≥-65dB/ ≥-60dB
- Spurious Radiation : ＜7μW
- Pre-emphasis characteristics: 6dB
- Current : ≤1.6A((5W)
- CTCSS/DCS deviation : 0.5 kHz±0.1kHz 0.3 kHz±0.1kHz
- Intermediation sensitivity : 1-10mV
- Intermediation distortion : ＜5%
Receiver
- RF Sensitivity: -122dbm(12db SINAD)
- Audio power: 1W
- Audio Distortion: <5%
- Blocking: ≥85dB
- Intermediation: ≥60dB ≥55dB
- Selectivity: ≥-65dB ≥60dB
- Spurious Rejection: ≥65dB
7 other products in the same category:

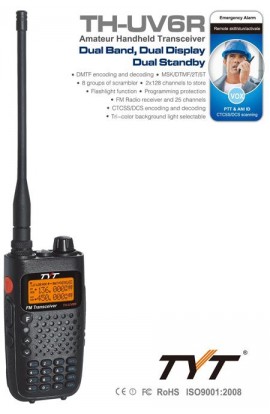

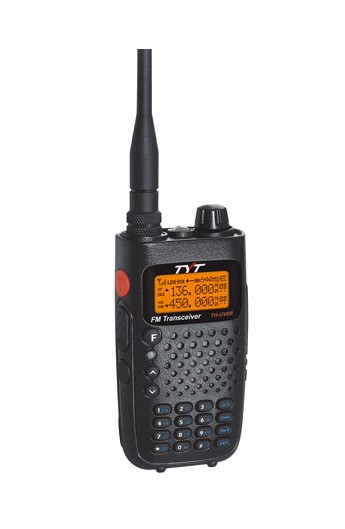

TYT TH-UV-6R VHF 136-174MHZ /400-480MHZ AMATEUR TWO-WAY RADIO
