Dynascan DB M 14

Dynascan DB M 14

€ 95,00 Bespaar € 34,00
€ 129,00
Incl. B.T.W.

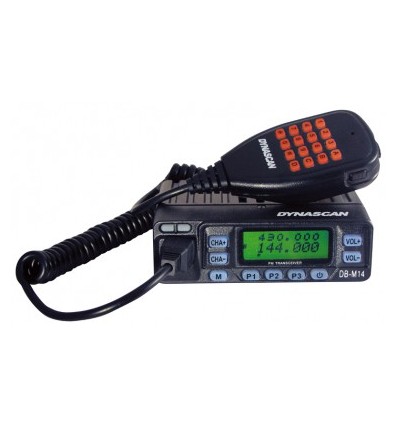

DYNASCAN DB-M14  VHF/UHF Dual Band FM Mobile Tranceiver

Aantal

Inclusief geurtje naar keuze

  •           Frequency Range: 430-440MHz, 136-174MHz
  • ·         Channel Capacity: 199
  • ·         Output Power: 4W/10W
  • ·         Operation Mode: Simplex
  • ·         Dimension: 120x85x40mm  (4.7”x3.5”x1.6”).
  • ·         Weight: 315g
  • ·         Modulation Limitation: ≤±5KHz
  • ·         Spurious Radiation: 60dB
  • ·         TX Current: 1A/1.8A
  • ·         Frequency Stability: ±2.5PPm
  • ·         Rx Sensitivity: <0.18μV
  • ·         Modulation Type: F3E
  • ·         Audio Power: ≥ 400mW
  • ·         Standby Curr






  • ·         PTT ID  (Voice broadcast PTT ID)
  • ·         All calls, group calls and selective calls
  • ·         Monitor, RX Inhibit, RXTX Inhibit
  • ·         FM Radio  (87.5MHz-108MHz)
  • ·         Scan/Scan add
  • ·         Channel name edit available
  • ·         199 memory channels
  • ·         High/Low power  (10W/4W
  • ·         APO  (Auto Power Off)
  • ·         TOT  (Time-out timer)
  • ·         Font Set  (Big/Small)
  • ·         VOX  (Level adjustable)
  • ·         Busy channel lockout
  • ·         Keyboard lock (Auto/Manual)
  • ·         Multi scan mode  (TO/CO)
  • ·         Channe steps
  •            (2.5K/5K/6.25K/10K/12.5K/25K)
  • ·         Wide/Narrow band selection (25KHz/12.5KHz)
  • ·         TX Stop
  • ·         Talk Around
  • ·         Beat frequency
  • ·         Reverse frequency function
  • ·         1750Hz burst tone
  • ·         Four key programmable
  • ·         Lease Function
  • ·         Input frequency by using Keypad
  • ·         Wireless changing frequency
  • ·         Time Display
  • ·         PC software disable frequency input
  • ·         Passwords for menu functions Set
  • ·         PTT Times per Minutes Set
  • ·         All / Function reset
  • ·         13.8V DC Power Supply





Package Content :

  • 1x Mobile transceiver
  • 1x DC Power Cable
  • 1x Bracket
  • 1x Bracket Screw
  • 1x User Manual
