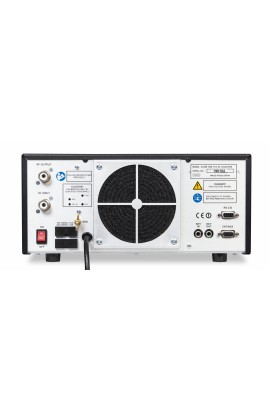

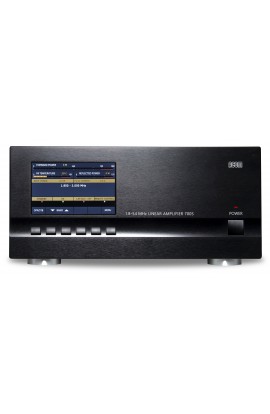

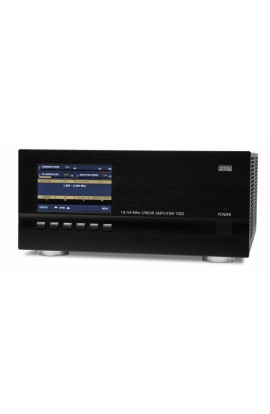

ACOM 700 S

€ 3.175,00
Incl. B.T.W.
  • ive inch (5”) (108x65mm) high resolution color display, 800x480 pixels and 24-bits colors.
  • The final stage uses field effect (MOSFET) transistors type MRFE6VP61K25N, designed to withstand high mismatch (SWR) at the output and intended for operation in aerospace, industrial, mobile, and radio broadcast applications.
Aantal

a) Rated output power: 700W +/-0.5dB, PEP or continuous carrier.

b) Intermodulation distortions (IMD3): better than 31dB below the rated PEP output.

c) Harmonic and parasitic emissions output suppression: better than 60dB (65dB typically).

d) Input and output impedances: nominal value: 50 Ohm unbalanced, UHF (SO239) type connectors;

• input circuit: broadband, SWR below 1.2:1 (1.1:1 typically); 1.8 – 54 MHz continuous range without retuning or switching;

• RF by-pass path SWR - below 1.1:1, 1.8-54 MHz;

• admissible SWR at the output load (the antenna): up to 3:1 with proportional power reduction and up to 1.5:1 for full output power;

e) RF power gain: 14dB +/-1dB;

f) Mains power supply voltage: 100V-240V without switching;

g) Mains power consumption at full output power:1350VA or less with a power factor of 0.95 or higher;

h) Mains power consumption in Low Energy (waiting) mode: less than 1VA;

i) Complies with EU safety regulations and electromagnetic compatibility standards, as well as with the US Federal Communications Commission (FCC) rules;

j) Environment working conditions:

• temperature range: -10 C to +40 C (14 F to 104 F);

• relative air humidity: up to 95% @ 35 C (95 F);

k) Dimensions (projections not included) and weight, operating: (W x H x D) 326 x 143 x 365 mm (12,8 x 5,6 x 14,2 In); 11.8 kg (26  Lbs).

No customer reviews for the moment.

Write your review

ACOM 700 S

  • ive inch (5”) (108x65mm) high resolution color display, 800x480 pixels and 24-bits colors.
  • The final stage uses field effect (MOSFET) transistors type MRFE6VP61K25N, designed to withstand high mismatch (SWR) at the output and intended for operation in aerospace, industrial, mobile, and radio broadcast applications.
