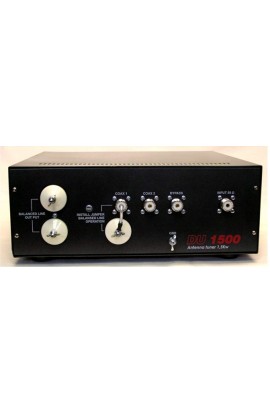

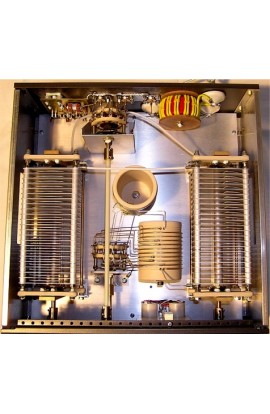

DU 1500 T ANTENNA TUNER

FEATURES

The DU 1500 optimizes the performance of your antenna and transmitter or SWL receiver

By providing adjustable impedance matching.The DU 1500 also measures the Power and

Standing Wave Ratio (SWR),which allows you to tune the indicted SWR to the lowest possible ratio for the selected transmit frequency.

SPECIFICATION

FRONT PANEL INDICATORS AND CONTROLS

Meter…………………………Cross needle Power and SWR meter.

CONTROLS

Input Tuning………………….Continuous rotation 4,5kV capacitor 330pF

Antenna Tuning………………Continuous rotation 4,5kV capacitor 330pF

Antenna Switch Selector………Five position ceramic switch:COAX 1, Tuned and

COAX 2 Tuned and BYPASS,COAX 1 DIRECT,

COAX 2 DIRECT

Power Range Switch…………..Two position: 200W/2kW

!!1.8MHz  SWR wors then 1:3  MAX  800W!!

REAR PANEL CONNECTORS

Coax 1…………………………...SO-239 Teflon connector

Coax 2…………………………...SO-239 Tflon connector

Balanced Line and single wire……………………High voltage ceramic terminal

Include 4:1 balun

OTHER

Frequency Coverage……………...1.8-30MHz ,continuously tunable

Power Maximum…………………1500W max 2kW

Input impedance………………….50ohm

Output inoedance…………………25-600ohm and wire 2000ohm

Weight…………………………….10lbs.(4,5kg)
