- High Power Microprocessor controlled Switched-L tuning network
- Two position antenna switch with 2000 memories for each position.
- Adjustable threshold for Auto mode
- Continuous coverage 1.8 to 54 MHz
- Power rating HF (1.8 to 30 MHz):
- 1000 Watts Single Side Band
- 750 Watts CW
- 400 Watts Digital (RTTY, Packet, etc)
- 6 meters: 250 Watts (any mode)
- Capacitor / Inductor fine tune controls
- Tuning time: 0.2 recall, 10 seconds average, 30 seconds max
- Tuning impedance: 6 to 1000 Ohms (approximately 10:1 SWR)
Dual meter scale 100/1000 watts and SWR
- Tuning power: 5 to 125 watts maximum
- Relay protection software prevents tuning when RF power is high
- LED indicators for Ant and Bypass.
- Optional External 4.5″ analog, LED backlit Meter, 6.7″ w x 4.0d x 4.0″ h.
- Includes 6 foot power cable 5.5 x 2.5 mm
- Power requirements: 11 to 15 volts DC @ 1 Amp (user supplies power source) www.Jameco.com WM1012-760 and 1953663 are compatible power supplies
- Enclosure sizes: 10W x 11D x 3H (in inches)
- Weight: 5.0 pounds
16 meer producten uit dezelfde categorie:

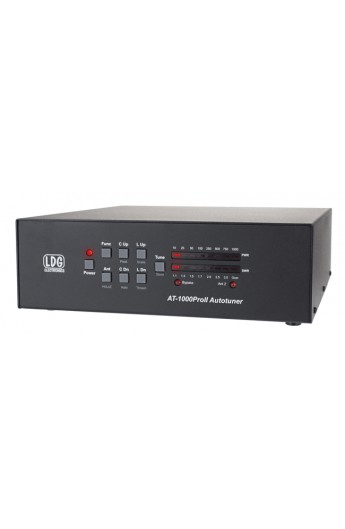

The LDG AT-1000ProII is our flagship automatic tuner. Made for QRO hams, it will handle 1,000 watts SSB or 350 watts FM/Digital from 1.8-54 MHz.
