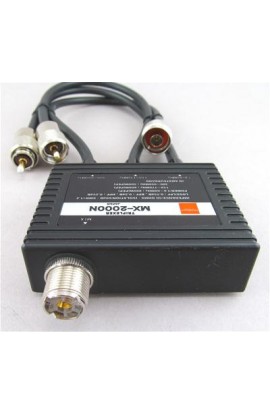

MX2000N Triplexer
MX2000N: HF 50/144/430MHz
Dimensions:86Wx25Hx64Dmm / Weight:360g
Pass Band Frequency:LPF/1.6 to 60MHz,BPF/110 to 170MHz,HPF/300 to 950MHz
Power :1.6-60MHz 800W (PEP),110-170MHz 800W (PEP),300-950MHz 500W (PEP)
Insertion Loss:1.6-60MHz Less than 0.15dB,110-170MHz Less than 0.2dB,300-950MHz Less than 0.25dB
Isolation:More than 60dB(In amateur band)
Impedance:50ohms
VSWR: Less than 1.2 (In amateur band)
Connector:MIX SO-239,50MHz PL-259,144MHz PL-259,430MHz NP
Coaxial cable:5D-2VS(35cm)
