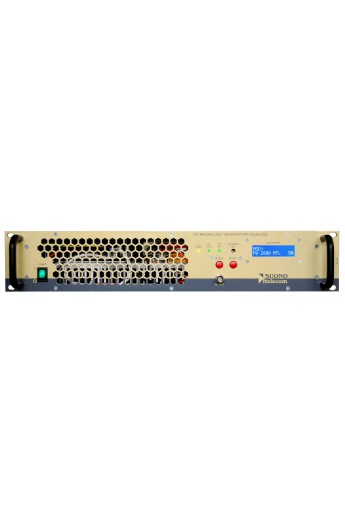

Suono ESVA100 85 - 108 MHz 100W FM Transmitter

Aantal

Suono ESVA 100W FM (Mono/MPX)



Technical Facts:
  • FREQUENCY RANGE: 85÷108 MHz
  • MODULATION: FM
  • EMISSION CLASS:  F3E
  • VCO TUNING: 25 MHz
  • FREQUENCY STABILITY:  ± 2.5 ppm
  • SYNTHESIZER STEP:10KHz
  • POWER OUTPUT:  0 ÷ 100 Watts
  • SPURIOUS EMISSION:  < - 80 dB or better
  • HARMONIC EMISSION:  < - 70 dB
  • STEREO SEPARATION:  > 55 dB @ 1KHz
  • DISTORSION:< 0.1 % (TYP. 0.06%) @ 1KHz
  • BASE BAND:  30 Hz ÷ 60 KHz within 0.15 dB
  • UNWEIGHTED S/N RATIO:>80 dB (30Hz ÷ 15KHz 50 S RMS)
  • ASYNCRONOUS AM S/N Ratio: > 70 dB Ref. 100% AM 400Hz
  • SYNCRONOUS AM S/N Ratio:  > 65 dB with FM @ 75KHz @400Hz
  • PRE-ENPHASIS: 50 OR 75 μS int. selectable
  • RF OUT CONNECTOR: N-F 50 Ohm
  • MPX INPUT CONNECTOR:  BNC-F
  • MPX INPUT IMPEDANCE:  2 KOhm
  • SCA INPUT CONNECTOR: 3 BNC-F
  • COOLING: Forced air by two brushless fans
  • OP.TEMPERATURE RANGE:- 10 ÷ +45 °C
  • MAXIMUM UMIDITY: 90 %
  • AC SUPPLY:  100 ÷ 240 VAC - 47 ÷ 63 Hz
  • DIMENSION: 2 unit rack 19", 405mm depth
  • WEIGHT: 10 Kg
