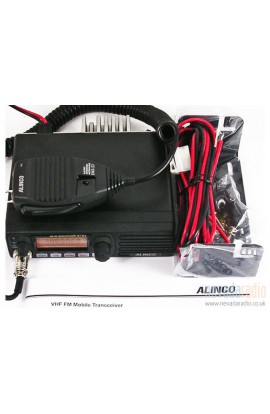

DR-B185HE
With an incredible power range from 5 to 85W, this new VHF mobile transceiver is one of the most powerful 2m models we have seen.

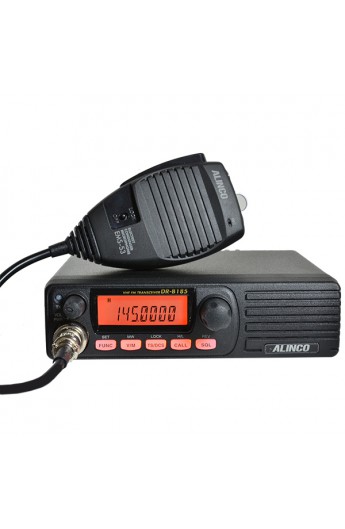

Very neat and simple front panel layout too, with a large clear well lit display.
features :
- Frequency coverage : 136.000-174.000 MHz
- Transmit frequency range: 144.000-148.000 MHz
- FM minimum power: 5w
- FM maximum power: 85w
- Transceiver maximum current : 20A
- Mode : FM
- Power requirements : 12-15VDC
- general information :
- 85/5 watts, H/L power settings
- Frequency range: TX/RX: 144-147.995 MHz (FM), RX: 136-173.995 MHz
- Operating modes: 16K0F3E (FM), 11K50F3E (Narrow-FM)
- Channel steps: 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
- Memory channels: 500 channels
- Antenna impedance: 50 ohms unbalanced (SO-239)
- Frequency stability: Plus/minus 2.5ppm TCXO
- Cloning capability
- CTCSS, DCS encode/decode, DTMF encode
- Clean, clear Alinco audio
- Super-wide alphanumeric display
- Wide and narrow FM modes
- Time Out Timer
- Power supply: 13.8V DC nominal, plus/minus 15 percent
- Polarity: Negative ground
- Current drain: Approximately 20.0A TX High, 6A TX Lo, 0.5A squelched
- Usable temperature range: 14 degrees F to 140 F
- Dimensions (w/o projection): 6.44 in. (W) x 1.73 in. (H) x 7.21 in. (D)
- Weight: 3.31 lbs.
- CTCSS tones: encode/decode 39 tones
- Digital Coded Squelch: encode/decode 104 codes
