Diamond SX 600 (N) 1.8-160/140-525 MHz

Diamond SX 600 (N) 1.8-160/140-525 MHz

€ 135,00
Incl. B.T.W.

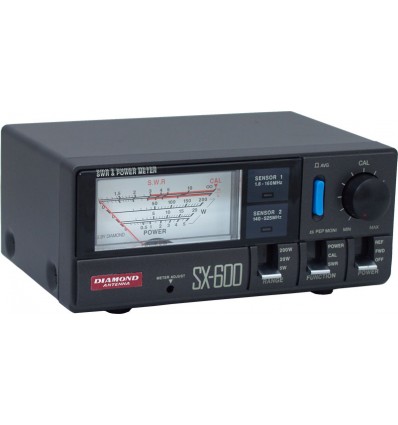

SX600 Dual-Band Power Meter

Aantal

SX600 Dual-Band Power Meter



Click image to enlarge.

The SX600 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.

Special Features:
Illuminated meter
Switchable r.m.s. or peak power
Measures forward, reflected & VSWR power
6"W x 2"H x 4"D, 2 lbs.
Specifications:
Frequency: 1.8-160/140-525 MHz
Power Ranges: 5/20/200
Connector:

SO-239  1.8-160

N-Conn   140-525

Min. Power SWR Test:: 4W

Remarks: 12VDC @ 50mA is required for illuminated display.

http://www.diamondantenna.net/sx600.html
