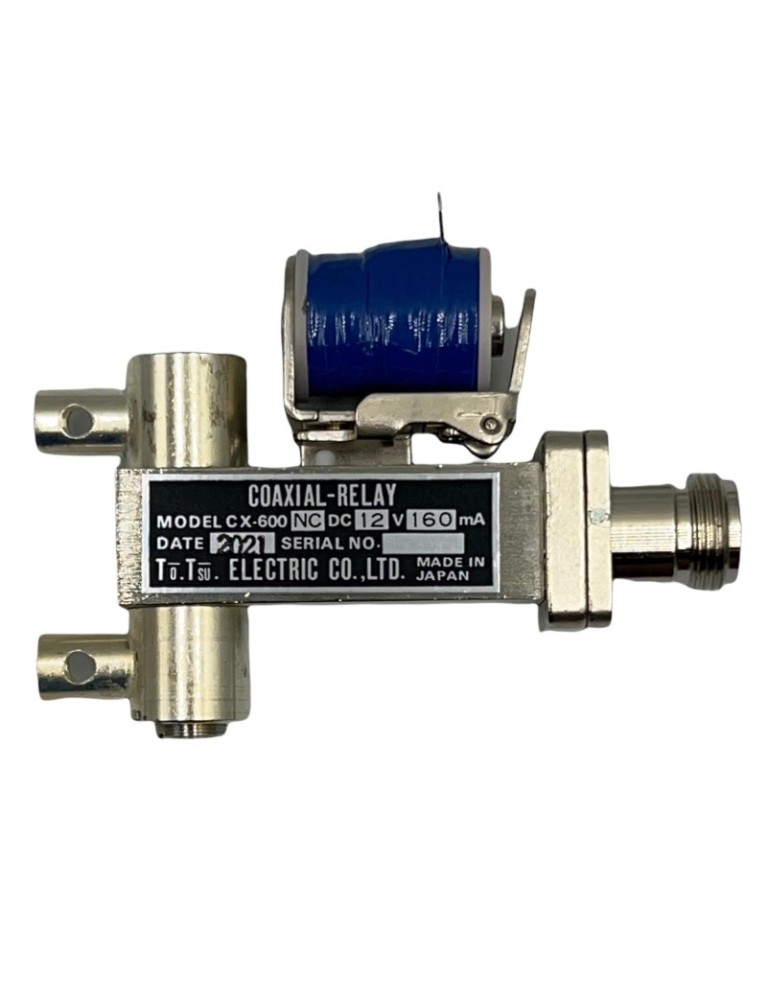

TOHTSU CX-600NC Coaxrelais - 2000 MHz
| Contact Arrangement | SPDT | |
| Operational Temperature | -25°C to +50°C | |
| Max Temperature Rise | 20°C | |
| Weight | Approx. 230 g | |
| Mounting | Four screws | |
| Cable Connections | 1 N type female connectors, directly connect cables |
| Impedance | 50 Ohms | |
| Nominal Voltage | 12 V DC | |
| Voltage Range | 10 V DC - 14 V DC | |
| Current | 160 mA @12 V DC 20°C | |
| Coil Resistance | 75 ±10% Ohms @ 20°C |
| Frequency | VSWR | Isolation | Ins. Loss | RF Power Input |
| MHz | max. | -dB (min) ±3 dB | -db (max) | W (PEP) |
| 50 | 1.03 | 55 | 0.07 | 1000 |
| 150 | 1.10 | 44 | 0.10 | 1000 |
| 500 | 1.15 | 33 | 0.15 | 800 |
| 1000 | 1.20 | 24 | 0.20 | 500 |
| 1500 | 1.20 | 22 | 0.20 | 350 |
| 2000 | 1.25 | 19 | 0.23 | 100 |
| Pull In | 10 V DC - 14 V DC (12 V DC nominal) | |
| Drop Out | 3 V DC min. |
| Pull In | 20 ms typical | |
| Drop Out | 15 ms typical | |
| Life Expectancy | 1.000.000 Operations min. |
