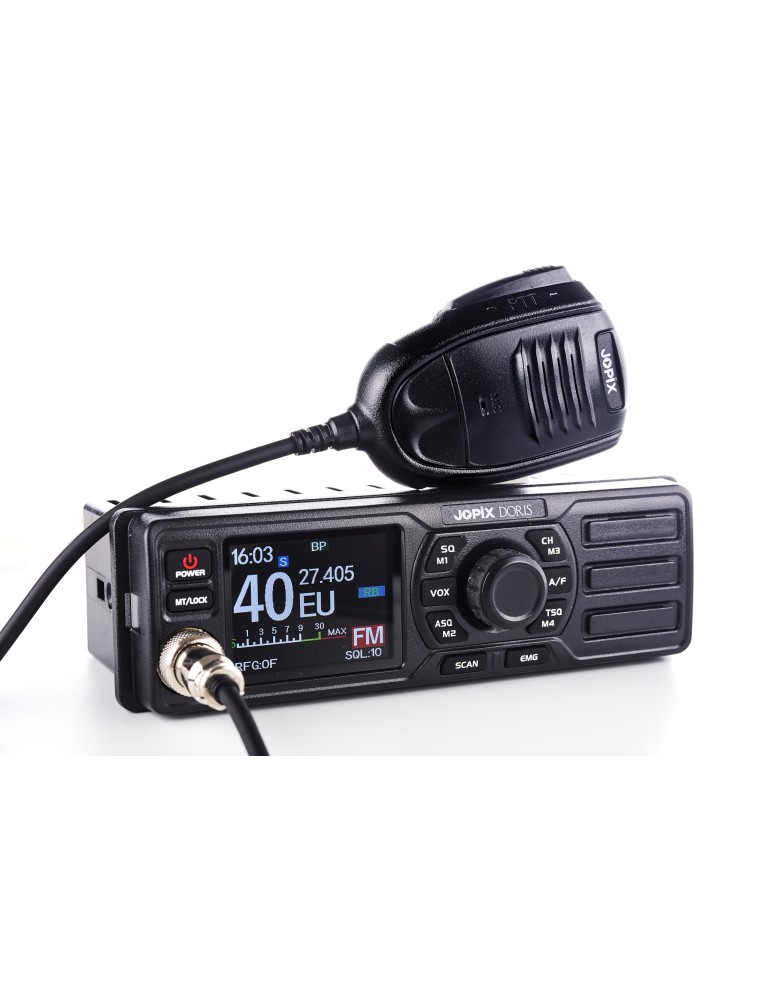

The Jopix Doris is a European multi-standard FM/AM CB (citizens band) radio with a large color screen and front speaker, ultra-small in size with only 6 cm depth, suitable for placement in almost any part of a vehicle (car, truck, tractor).
The Jopix Doris offers us multiple functions such as double watch, which allows monitoring 2 channels at the same time, the SCAN function, with different scanning modes, the VOX function for voice-activated transmission, the Talk Back function, which allows listening self over the speaker during transmission, among other prominent features and functions.
The Jopix Doris transmitter has several installation possibilities:
- In the 1 DIN size car radio hole
- With the included mounting bracket with screws
- With the sucker mount (not included)
MAIN FEATURES
- Transmission power: 4 W (FM/AM)
- Power supply: 12/24 V.C.D
- Front speaker
- DIN adapter for installation
- 40 channels
- ASQ
- Channel scan
- Direct 9/19 channels
- Channel lock
- CTCSS/DCS
- Scan function
- VOX function
- Doble watch function
- TOT function
- Large LCD display of different colors
- Selectable microphone type: dynamic/electronic
- Microphone gain and sensitivity adjustments
- Noise reduction in RX
- SWR protection
- Emergency channel
- Roger beep
- Weight: 540 g
- Measures: 190 x 70 x 60 mm
TECHNICAL SPECIFICATIONS
GENERAL:
- Frequency range: CB-27 Citizen´s band (According the
multistandard mode programmed) - Modulation type: AM/FM
- Channel separation: 10 kHz
- Frequency stability: ±5 ppm
- Power supply: 12/24 VDC
- Frequency control: PLL synthesizer
- Operating temperature range: -20 ºC to +55 ºC
- Antenna impedance: 50 Ω
TRANSMITTER:
- Transmission output power: 4 W (AM/FM)
- Emission type: F3E (FM), A3E (AM)
- Frequency response: 300-3000 Hz
- Spurious emissions: ≤4 nW (-54 dBm)
- Distortion: <5 %
- Current: 3 A
RECEIVER:
- Sensitivity: ≤1.0 μV for 10 dB (S+N)/N
- Image frequency rejection: 70 dB
- Adjacent channel selectivity: 60 dB
- IF frequencies 1st: 10.695 MHz / 2nd: 455 kHz
- Automatic gain control (AGC): <10 dB
- Squelch: <1.0 μV
- Frequency response: 300 to 3000 Hz
- Audio output power: 1 W
- Current: 0.8 A (max. volume)
CONTENT
- Mobile radio
- Microphone
- Power cord
- DIN mounting bracket for transmitter with screws
- Shelf support with screws
- Microphone stand with screws
- Instruction manual (Spanish/English/French/Portuguese)
