• 999 memory channels
• Four transmission bands and 7 reception bands
• TX frequencies: 28-29,700 MHz (10m), 50-52,000 MHz (6 m), 144-146,000 MHz (VHF), 430-440,000 MHz (UHF)
• RX frequencies: 26-29.995 MHz (10 m), 50-53.995 MHz (6 m), 87.5-108 MHz (commercial FM radio) 108-179.995 MHz (Airband), 320-349.995 MHz, 400-479.995 (UHF), 700-985,000 MHz
• Frequency jumps: 5 kHz / 6.25 kHz /10 kHz / 12.5 kHz /20 kHz /25 kHz / 30 kHz / 50 kHz / 100 kHz
• Repeater mode
• Crossband duplex and crossband repeater, UU, VV, UV or VU
• 8-group “scrambler” encoder, customizable
• Maximum selectable power depending on the band: 5W, 10 W (6 m and 10 m)/20 W/ 40 W (UHF)/50 W (VHF)
• Memory channel
• Channel search
• Priority scanning
• Double surveillance
• Busy channel blocking
• Full duplex cross band and cross band repeater
• Company
• CTCSS/DCS encoding/decoding (50 CTCSS groups and 105 DCS positive and negative groups)
• CTCSS/DCS tone scanning
• Large LCD dual screen
• Backlit keyboard
• LED with 3 selectable colors
• Edit and display channel name
• Battery meter
• Minimum operating voltage alarm
• Energy saving
• Auto power off
• Timeout timer
• Keyboard lock
• Audible button beeps
• Voice prompts
• Two 3.5mm speaker ports
• Capable of cloning
• PC programmable (requires optional cable)
• Double speaker and double output
• Backlit DTMF handheld microphone with speaker
• Cooling fan
• Remote front panel installation option
• DTMF encoding and decoding

SPECIFICATIONS

• Dimensions: 140 mm × 44 mm × 207 mm
• Weight: 1440 g (microphone included)
• Power requirement: 13.8 VDC +/- 15% (negative ground)
• Antenna connector type: SO-239 (UHF female)

CONTENT

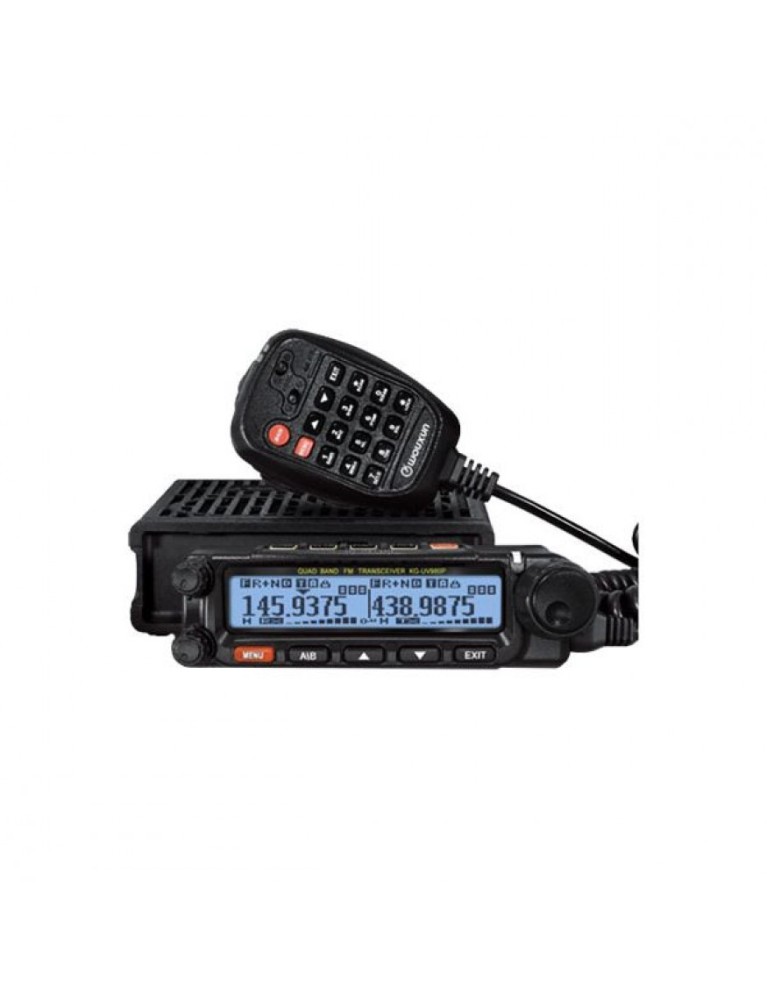

• Wouxun KG-UV980P Mobile Transceiver
• Handheld microphone
• Inclined Switchboard Panel (Already Installed)
• Flat Switchboard Panel
• Movable mounting bracket
• Remote front panel support
• Mobile power cable
• Extension cable
• Screw sets
• Handheld microphone hook
• 2 Fuses 15A 32V
• User manual (Spanish, English, French and Portuguese)
